Load Indicator

Leading Manufacturer of crane safe load indicator, safe load indicator, eot crane load monitoring indicator, eot crane load indicator, digital load indicator and load moment indicator from Pune.

Our Products

Load Indicator

Crane Safe Load Indicator

Safe Load Indicator

EOT Crane Load Monitoring Indicator

EOT Crane Load Indicator

Digital Load Indicator

It is a new approach towards crane safe guard instrumentation. It senses and monitors the crane loading and automatically trips the UP motion under overload condition. The UP motion is restored automatically once the overload condition is removed. At a glance, the operator can find graphically all the parameters of the machine connected to the system on his cabin or pendant graphical LCD Display.

Features and Benefits:

Safe load indicating system for Industrial material handling equipments

Operator friendly

Large 10 inch high, ultra-bright LED display for ease of reading from long distances

Radio frequency remote for functions like Tare, Mute Calibration

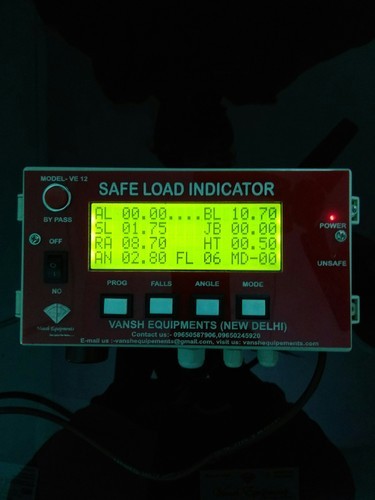

Optional Graphical LCD display to be installed on pendant or operator cabin

View all necessary information at a glance on the graphical pendant or cabin display

Optional data logging facility with time stamp

Data log can be customized according to customer need

Optional remote printer facility

Data protection in case of failure

Potential free contact for overload motion cut control action

Rugged design tropicalised for Indian conditions

User settable multiple alarm zones

Capable of handling dynamic loading without giving false alarm

Various Sensor Options for different applications

Audio alarm for overload condition

Quick and easy installation as well as calibration

Self-diagnostics system warns the operator of any type of system failure

Fully tested against humidity, temperature and vibration

Extensive transient protection testing has been performed to ensure faultless operation even under severe climatic conditions such as lightning

Designed for ease of operation and service

Compact, powerful computing

Plug-in cables

System purpose-designed for long life in cranage environment

Minimal number of moving parts with solid-state circuitry

Hence long uninterrupted service

Specifications:

Load lifted along with all error messages.

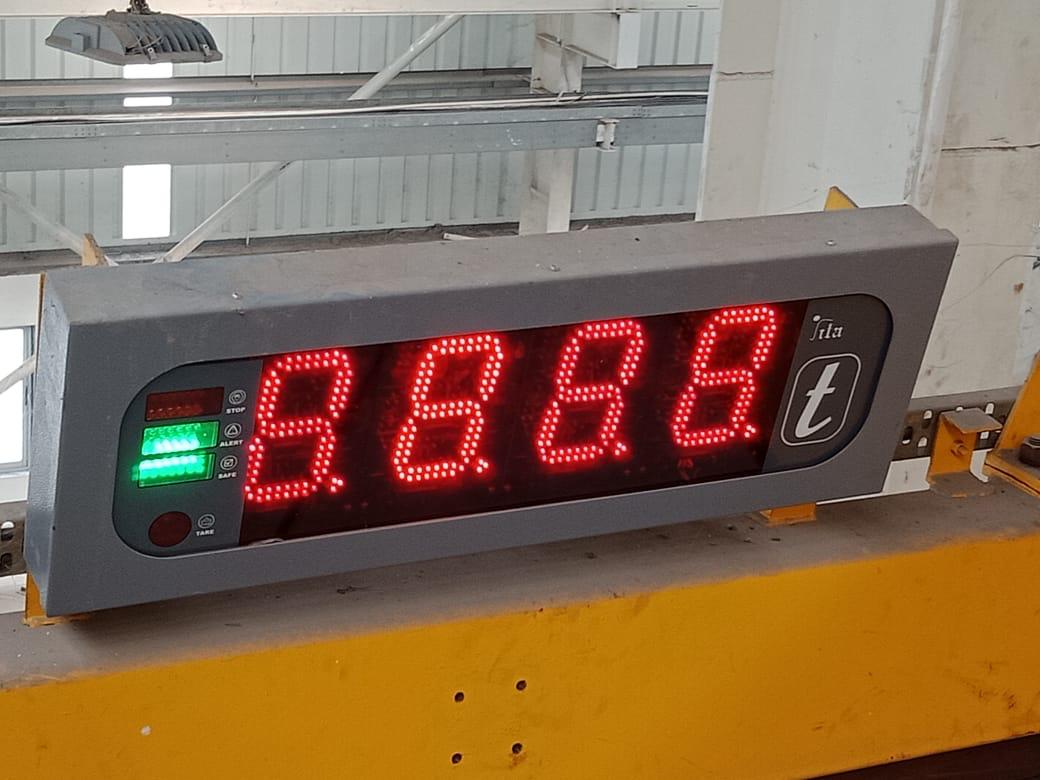

This ultra bright 10 inch high Display along with the led Annunciator is clearly visible from a long distance

The system can be configured, calibrated, and operated from a distance by using radio linked Remote control

Extremely flexible, this system can be customized to meet your most demanding requirement

Total of 2,000 logs which are stored in cyclic manner using FIFO algorithm

Accuracy is better than +/-2 % FS

Wide operating voltage range (85Vac to 265Vac)
